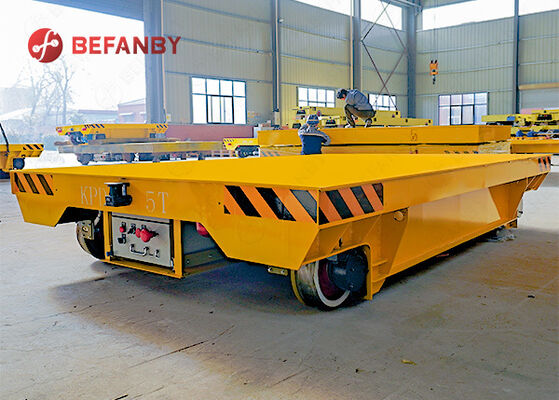

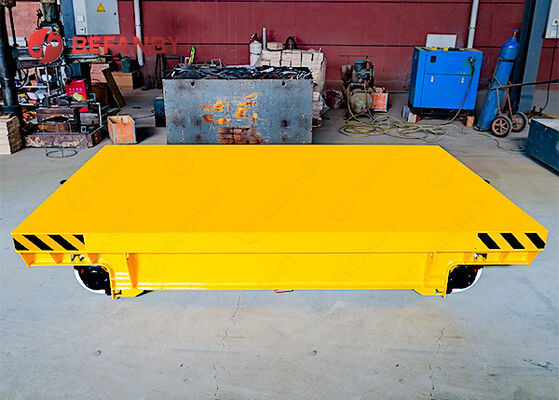

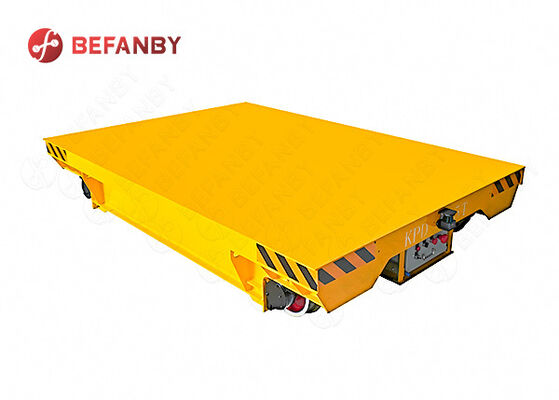

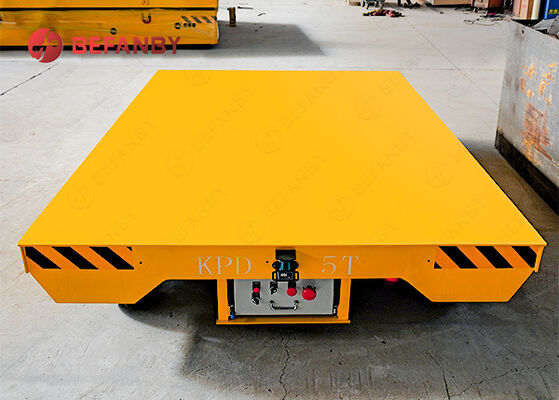

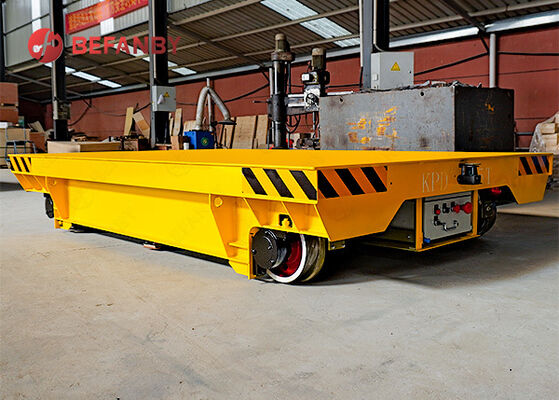

Heavy Duty 5 Tonne Transfer Carts With Low Voltage Rail Power Supply
| Miejsce pochodzenia | Henan, Chiny |
|---|---|
| Nazwa handlowa | BEFANBY |
| Orzecznictwo | CE,SGS,ISO9001 |
| Numer modelu | KPD |
| Minimalne zamówienie | 1 zestaw/zestawy |
| Cena | negocjowalne |
| Szczegóły pakowania | Wózek transferowy będzie zapakowany przez plandekę, części będą pakowane w drewnianej obudowie wysok |
| Czas dostawy | 20-30 dni jak zwykle dostawa |
| Zasady płatności | Akredytywa, T/T, Western Union |
| Możliwość Supply | 1500 zestawów/zestawów rocznie |
Szczegóły Produktu
| Ładowność | 1-300 ton, konfigurowalny | Zasilanie | szyna niskiego napięcia |
|---|---|---|---|
| materiał ramy | stal | Metoda kontroli | Podręczny wisiorek lub pilot bezprzewodowy |
| Układ napędowy | Możliwość dostosowania | Materiał kół | Możliwość dostosowania |
opis produktu
Heavy Duty 5 Tonne Transfer Carts With Low Voltage Rail Power Supply
Product Description
The low-voltage rail transfer cart is an electric transport device powered by a safe, low-voltage rail power supply system. This series of transfer carts continuously draws electrical energy directly from the rails, eliminating the need for frequent battery replacements; it is therefore particularly well-suited for medium-to-long-distance and high-frequency transport operations.
Typically, low-voltage rail transfer carts utilize a 36V or 48V low-voltage rail power supply system. A step-down transformer converts high-voltage electricity into safe low-voltage power, which is then transmitted to the rails; the cart's current collector subsequently draws this energy to drive the motor. This method of power supply not only ensures operational safety but also enables continuous operation, thereby effectively enhancing production efficiency.
Product Details
The transfer cart utilizes a high-performance motor drive system, ensuring smooth operation and soft starts, and is capable of effortlessly transporting loads ranging from several tons to hundreds of tons. Whether handling large steel structures, mechanical equipment, molds and fixtures, or raw production materials, it ensures safe and reliable transport. Furthermore, based on specific operational requirements, the cart can be configured with a variable-frequency speed control system to achieve precise control and stable performance.
Product Parameter
| Product Name | Model No. | Power Supply Mode | Load Capacity | Other Items | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-300ton, can be customized per client demand | Running distance | Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery | Using frequency | ||
| Motorized Transfer Trolley | KPJ | Cable Drum | Running distance | ||
| Busbar Powered Handling Cart | KPC | Busbar | Working shop | ||
| Towed Rail Trailer | KP | Tractor | 1-100t | Working shop | |
| Steerable Towed Car | BWT | Tractor | Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. | Working environment | |
| Trackless Handling Machine | BWP | Battery | Working path |
Product Feature
Safety Design Safeguards Production and Transport
To meet the operational demands of industrial production environments, the material transfer cart can be equipped with a comprehensive array of safety features—including emergency stop devices, limit protection, anti-collision bumpers, and audible-visual alarm systems. Furthermore, its low-voltage power supply design minimizes operational complications. thereby providing enhanced and reliable safety protection for both workshop personnel and equipment operations.
Applications
Company Profile
Related Products
FAQ
-
1) Q: How can I operate the transfer cart ?A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
-
2) Q: How to ensure your product quality ?A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
-
3)Q: Whether you can offer customized transfer cart?A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
-
4)Q: Whether there is professional technician assist our installation?A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
